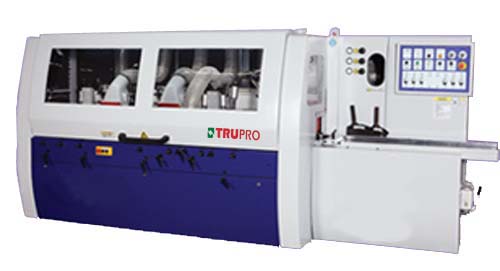

4 Side Moulder

MOU-160-4 / MOU-160-5 / MOU-160-5T / MOU-160-6
4-Side Moulder
  •

    l Stepless speed change device 6-24 m/min.

    lIndividual motor to each spindle to ensure maximum cutting.

    l All spindle adjustments are carried out in front of the machine for convenience.

    Hard chrome treatment has been adopted for the durability of the work table surface.

    lChain-wheel box is equipped for advancing the smooth feeding of short piece availably.

    lBottom driving bed rollers for enhancing feeding performance.

    l Pneumatic pressure loading to top feed rollers separately adjustable for easy of feeding stock with variation in thickness.

    l Manual lubrication to the work table and carriage , easy to centralized control and shortcut.

    l Sealed safety enclosure avoid splashing of wood chips and insulate the noises , it is good for the safe protection.

  • Model

    MOU-160-4

    MOU-160-5

    Working Width(mm)

    Min.

    20

    Max. cuter OD of 130mm

    165

    Working thickness(mm)

    Min.

    10

    Max. cuter OD of 130mm

    100

    Number of spindles

    4

    5

    Spindle Speed(r/min)

    6000

    Cutting circles(max. ~min)

    (mm)

    First bottom Spindle

    Ø110 ~ Ø125

    Right side Spindle

    Ø110 ~ Ø160

    Left side Spindle

    Ø110 ~ Ø160

    First top Spindle

    Ø110 ~ Ø160

    Second top Spindle

    ~~~~~~~~



    Second bottom spindle

    ~~~~~~~~

    Ø110 ~ Ø160

    Spindle diameter(mm)

    Ø40

    Motor powers (Standard)

    (kW)

    First bottom Spindle

    4kW/5.5HP

    Right side Spindle

    4kW/5.5HP

    Left side Spindle

    4kW/5.5HP

    First top Spindle

    5.5kW/7.5HP

    Second top Spindle

    ~~~~~~~~

    Second bottom spindle

    ~~~~~~~~

    4kW/5.5HP

    Feed

    3kW/4HP

    Feed beam rise & fall

    1.1kW/1.5HP

    Total motor power(kW)

    21.6kW/29.5HP

    25.6kW/35HP

    Feed speed (m/min)

    6~24m/min

    (Stepless variable feed )

    Dia. of dust suction pipe (mm)

    Ø130



















    Model

    MOU-160-5T

    MOU-160-6

    Working Width(mm)

    Min.

    20

    Max. cuter OD of 130mm

    165

    Working thickness(mm)

    Min.

    10

    Max. cuter OD of 130mm

    100

    Number of spindles

    5

    6

    Spindle Speed(r/min)

    6000

    Cutting circles(max. ~min)

    (mm)

    First bottom Spindle

    Ø110 ~ Ø125

    Right side Spindle

    Ø110 ~ Ø160

    Left side Spindle

    Ø110 ~ Ø160

    First top Spindle

    Ø110 ~ Ø160

    Second top Spindle

    Ø110 ~ Ø160

    Ø110 ~ Ø160

    Second bottom spindle

    ~~~~~~~~

    Ø110 ~ Ø160

    Spindle diameter(mm)

    Ø40

    Motor powers (Standard)

    (kW)

    First bottom Spindle

    4kW/5.5HP

    Right side Spindle

    4kW/5.5HP

    Left side Spindle

    4kW/5.5HP

    First top Spindle

    5.5kW/7.5HP

    Second top Spindle

    4kW/5.5HP

    4kW/5.5HP

    Second bottom spindle

    ~~~~~~~~

    4kW/5.5HP

    Feed

    3kW/4HP

    4kW/5.5HP

    Feed beam rise & fall

    1.1kW/1.5HP

    Total motor power(kW)

    25.6kW/35HP

    30.6kW/42HP

    Feed speed (m/min)

    6~24m/min

    (Stepless variable feed )

    Dia. of dust suction pipe (mm)

    Ø130
