4 Side Moulder

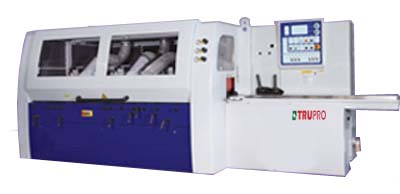

MOU-200-4 / MOU-200-5 / MOU-200-6
4-Side Moulder
  • l Stepless speed change device 6-24 m/min.

    l Individual motor to each spindle to ensure maximum cutting.

    l All spindle adjustments are carried out in front of the machine for convenience.

    l Hard chrome treatment has been adopted for the durability of the work table surface.

    l Chain-wheel box is equipped for advancing the smooth feeding of short piece availably.

    l Bottom driving bed rollers for enhancing feeding performance.

    l Pneumatic pressure loading to top feed rollers separately adjustable for easy of feeding stock with variation in thickness.

    l Manual lubrication to the work table and carriage , easy to centralized control and shortcut.

    l Sealed safety enclosure avoid splashing of wood chips and insulate the noises , it is good for the safe protection.

  •

    Model

    MOU-200-4

    MOU-200-5

    Working Width(mm)

    Min.

    20

    Max. cuter OD of 130mm

    200

    Working thickness(mm)

    Min.

    8

    Max. cuter OD of 160mm

    120

    Number of spindles

    4

    5

    Spindle Speed(r/min)

    6000

    Cutting circles (max. ~min)

    (mm)

    First bottom Spindle

    Ø110 ~ Ø145

    Right side Spindle

    Ø110 ~ Ø180

    Left side Spindle

    Ø110 ~ Ø180

    First top Spindle

    Ø110 ~ Ø180

    Second top Spindle

    ~~~~~~~~



    Second bottom spindle

    ~~~~~~~~

    Ø110 ~ Ø180

    Spindle diameter(mm)

    Ø40

    Motor powers (Standard)

    (kW)

    First bottom Spindle

    5.5kW/7.5HP

    Right side Spindle

    4kW/5.5HP

    Left side Spindle

    4kW/5.5HP

    First top Spindle

    5.5kW/7.5HP

    Second top Spindle

    ~~~~~~~~

    Second bottom spindle

    ~~~~~~~~

    5.5kW/7.5HP

    Feed

    3kW/4HP

    Feed beam rise & fall

    1.1kW/1.5HP

    Total motor power(kW)

    23.1kW/31.5HP

    28.6kW/39HP

    Feed speed (m/min)

    6~24m/min

    (Stepless variable feed )

    Dia. of dust suction pipe (mm)

    Ø130


































    Model

    MOU-200-6

    Working Width(mm)

    Min.

    20

    Max. cuter OD of 130mm

    200

    Working thickness(mm)

    Min.

    8

    Max. cuter OD of 160mm

    120

    Number of spindles

    6

    Spindle Speed(r/min)

    6000

    Cutting circles (max. ~min)

    (mm)

    First bottom Spindle

    Ø110 ~ Ø145

    Right side Spindle

    Ø110 ~ Ø180

    Left side Spindle

    Ø110 ~ Ø180

    First top Spindle

    Ø110 ~ Ø180

    Second top Spindle

    Ø110 ~ Ø180

    Second bottom spindle

    Ø110 ~ Ø180

    Spindle diameter(mm)

    Ø40

    Motor powers (Standard)

    (kW)

    First bottom Spindle

    5.5kW/7.5HP

    Right side Spindle

    4kW/5.5HP

    Left side Spindle

    4kW/5.5HP

    First top Spindle

    5.5kW/7.5HP

    Second top Spindle

    5.5kW/7.5HP

    Second bottom spindle

    5.5kW/7.5HP

    Feed

    4kW/5.5HP

    Feed beam rise & fall

    1.1kW/1.5HP

    Total motor power(kW)

    35.1kW/48HP

    Feed speed (m/min)

    6~24m/min

    (Stepless variable feed )

    Dia. of dust suction pipe (mm)

    Ø130
