Acrylic processing equipment

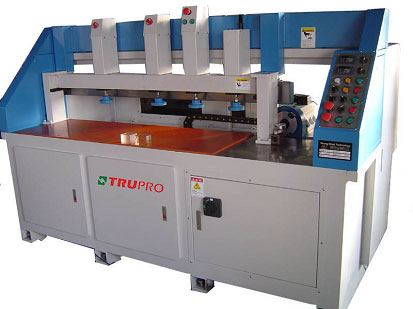

Acrylic Panel Polisher
  • Diamond cuthead with excellent accuracy
    Pressing units allowed to be operated separately.
    Standard: 4-unite
    Optional: available if required.
    High speed direct-driven motor with variable speed adjustment.


  • Model ACR-1000
    Max. working thickness 100mm
    Max. working length 1000mm
    Processing for one time 0.05~0.5 mm(with percentage chart)
    Spindle motor 3HP
    Spindle speed max.6000rpm(variable speed)
    Working table transfer motor 1HP
    Working table adjustable variable speed
    Cutting tool crude working tool x2, find working tool x1
    Dust chute outlet diameter Ø100mm x 1
