Bandsaw- Vertical

WBS-900HA

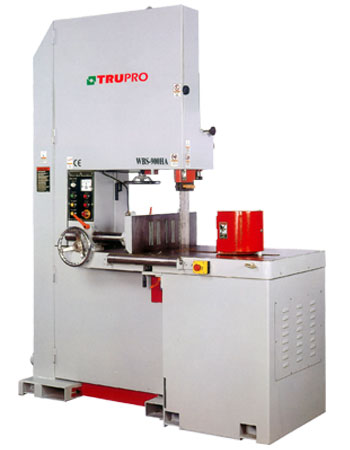

36" Wood BandSaw
  • Model WBS-900HA
    Saw Wheel Diameter 900 mm (36")
    Table size 1400 x 850 mm (55 1/8" x 33 1/2")
    Table height from floor 1030 mm (40 5/8")
    Max. distance from guide to table 400 mm (15 3/4")
    Blade length 5909 - 5999 mm (232 5/8"~236 1/4")
    Width of blade 125 mm (5")
    Fence operating 370 mm (14 5/8")
    Feed operating 300 mm (12")
    Dust hood dia. Ø4" x 2
    Air pressure 5 kg/cm2
    Feed speed (Variable) 8-32 m/min (26-105 ft/min)
    Saw wheel drive motor 30 HP (25, 40HP optional)
    Feed drive motor 2 HP
    Blade linear speed 2300 m/min (7500 ft/min)
    Net weight 1750 kgs
    Gross Weight 2000 kgs
    Machine Size (L x W x H) 1980 x 1230 x 2540 mm
    Packing Size (L x W x H) 2650 x 1450 x 2200 mm
    Design and specifications are subject to change without prior notice.
