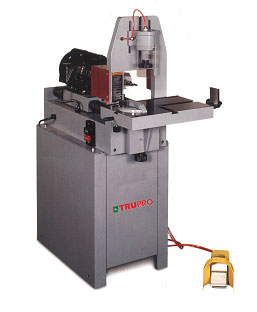

Boring Machine

DB-301
Horizontal Boring Machine
  • FEATURES:

    • Manufactured for cabinet and furniture shops.
    • Pneumatic foot pedal controls clamping and boring action sequentially.
    • Simple air flow control valve adjusts rate of head travel.
    • Heavy cast iron table adjusts up and down for varying stock thickness.
    • Built-in chip chute directs dust and debris away from machine.
    • Fabricated steel cabinet has bolt-down feet for operating stability.
  • Model DB-301
    Motor 2 HP
    Spindle speed 2860 rpm(50HZ) 3450 rpm(60HZ)
    Spindle thread M8×1.25P(or 5/16"×18 UNC)/
    M10×1.5P(or 7/16"×14UNC)
    Boring stroke 100 mm
    Table size 400×250 mm
    Max. material thickness 216 mm
    Overall size 953×400×1219 mm
    Packing size 820×460×750 mm
    N.W 120 kgs
    G.W 145 kgs
