Briquette Press & Wood Crusher

CRU-50BM

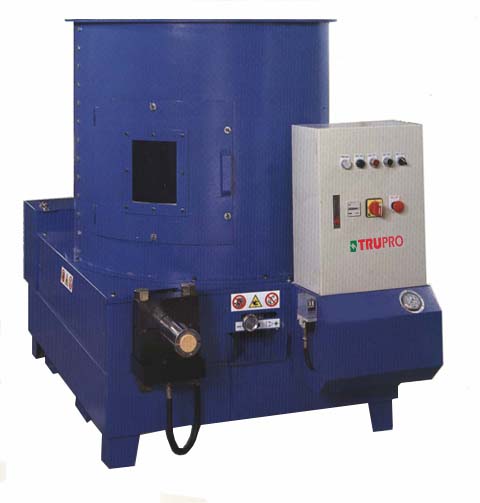

Briquetting Press Machine
  • l All the wooden chips or dust from the woodworking machine at your factory can be pressed through hydraulic system to get cylinder shaped pieces.



    lA great save to your cost on handling the waste.



  • Model



    CRU-50BM



    Installed power



    4KW



    Ferrule dimension



    Ø 1000×H920mm



    Max. volume of saw dust in a ferrule



    0.8M3

    Briquette dia.



    50mm

    Power



    7.5HP



    Pump



    26cm3  1000g  group 2



    Max. working pressure



    15MPa



    Dimensions



    1680×1100×1500 mm



    Measurement



    1770×1170×1680 mm



    N.W. / G. W



    680/850kgs
