Briquette Press & Wood Crusher

CRU-1000B / CRU-2500B

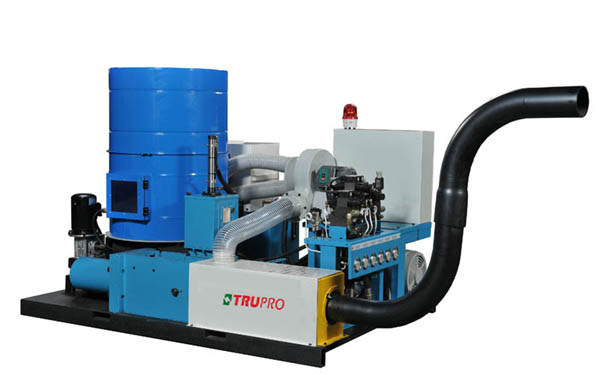

Briquette Press Machine
  • Features:

    l The Briquette Press Machine is suitable for use in converting wood wastes into compressed briquette chips. Which are suitable to be used as a source of fuel and decreasing transportation costs of wood waste.

    l The briquette chips have a diameter range of 76mm and 100mm, and length of 50-80mm; for CRU-1000B and CRU-2500B accordingly.

    l The compressing concept is via the operation of hydraulic cylinders using pressure and the screw conveyor delivering the wood wastes to compressed to from briquette chips.



    Advantages:

    l Reliability and longevity associated with hydraulic machine system.

    l Produce high quality, evenly shaped briquettes in a unique closed end die system.

    l Minimum friction is generated for low wear rates.

    l PLC control hydraulic system which keeps all the hydraulic cylinders in sequence and optimizes the motor power by operating a sequence of valves to reduce the oil flow as the pressure increases on each cycle.

    l Combined with the inherently efficient design described above, results in very low motor power for a given output; saving on energy consumption.

    l Particle size can be anything up to 15mm in diameter and humidity up to 10hm.

  • Model

    CRU-1000B

    CRU-2500B

    Motor

    10HP

    25HP

    Briquette: Dia.

    76 mm

    100 mm

    Production

    40 ~90 kg/Hr

    50~180 kg/Hr

    Bin capacity

    0.28 M3

    0.50 M3

    Blower motor

    3/4HP

    1.5HP

    Dimensions

    2170×1570×1600 mm

    2170×1570×1600 mm

    Machine weight

    870kgs

    1600kgs
