Surface Grinder Machine

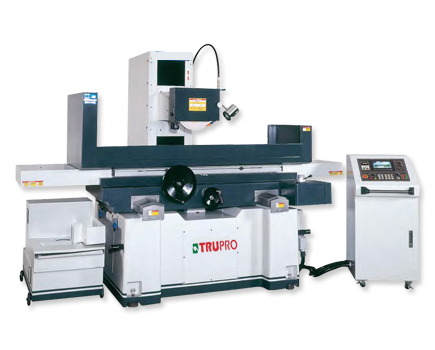

MG-2040TD
High Precision Surface Grinder Machine
  • Model

    MG-2040TD

    Table size

    506×1020mm

    Max. grinding surface(L*W)

    1020×500mm

    Max. distance center of spindle to table

    630mm (Optional:720mm)

    Standard magnetic chuck size

    500×1000mm

    Longitudinal movement of table



    Max. travel hydraulic

    1060mm

    Max. travel manual

    1100mm

    Max. travel infinitely variable

    60HZ: 5-25M/min 50Hz: 5-20M/min

    Cross transverse travel



    Auto transverse increment

    1-25mm

    Auto constant feeding speed

    20-320mm/min

    Max. auto transverse travel

    510mm

    Max. manual transverse travel

    520mm

    Handwheel per revolution

    5mm

    Handwheel per graduation

    0.02mm

    Wheelhead vertical infeed



    Auto infeed

    0.001-0.05mm

    Step feed (Jog)

    0.001mm

    Rapid travel approx.

    150mm/min

    Slow travel approx.

    6mm/min

    Handwheel revolution

    ---

    Handwheel graduation

    ---

    Grinding spindle drive



    Speed

    60HZ: 1450rpm 50Hz: 1750rpm

    power rating

    7.5HP

    Grinding wheel size(D×W×B)

    355×50mm×127mm

    Hydraulic motor

    3HP×6P

    Cross-feed motor

    750W

    Elevating motor

    1KW

    Floor space

    4170×2200×2100mm

    Rated power approx.

    13.5HP

    N.W. / G.W.

    4800kgs / 5200kgs

    Packing dimensions

    3500×2290×2460mm
