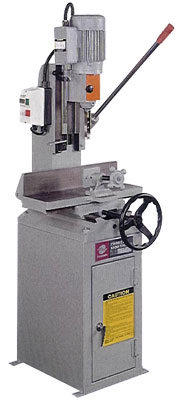

Chisel Mortiser

CM-1913
Chisel Morticer
  • Model CM-1913
    Max. chisel size (softwood) 25mm (1")
    Max. chisel size (Hardwood) 19mm (3/4")
    Timber capacity 225x180mm (10"x7")
    Stroke of chisel head 125mm (5")
    Motor T.E.F.V. 075KW 1HP
    Longitudinal table movement 400mm (16")
    Lateral table movement 90mm (3 1/2")
    Overall Dimensions :
    Length 520mm (20.5")
    Width 670mm (26.4")
    Height 1460mm (57.5")
    Net weight 165kgs (364 lbs)
    Gross weight 215kgs (474 lbs)
    Packing size (LxWxH) 30.1" x 21.5" x 58" (765x545x1470mm)




TRUPRO-TEC Industrial Co., Ltd.

  • No.90, Alley22,Lane 428, Sec. 1, Fong Yuan Blvd. Fong Yuan Dist. Taichung City, Taiwan, ROC
  • Tel. 886-4-25358299(Rep)
  • Fax. 886-4-25332009
