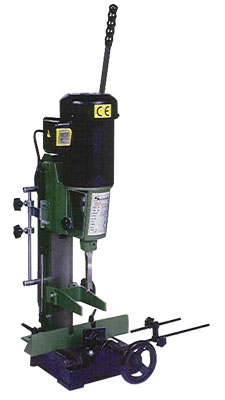

Chisel Mortiser

CM-1600
Hollow Chisel Mortiser
  • Model CM-1600
    Chisel Capacity (mm) 6-16 (1/4"-5/8")
    Max Chisel Stroke (mm) 16–3/4" x 21-1/4"
    Distance From Fence To Center Chisel (mm) 76(3")
    Distance From Center Chisel To table (mm) 170(6 1/2")
    Chuck Capacity (mm) 13(1/2")
    Speed Of Spindle (R.P.M.) 50HZ/2850 R.P.M.
    60HZ/3450 R.P.M.
    Size Of Table (mm) 150x345(6"x13 1/2")
    Size Of Base (mm) 190x275(7 1/2"x11")
    Table Molement Longitudinal (mm)
    Table Molement Lateral (mm)
    Motor (HP) 1/2(0.37KW)
    Overall Height (mm) 680(260 3/4")
    Net Weight (KGS) 30
    Gross Weight (KGS) 32
    CUFT 2.00'
    Packing Size 610x330x265 (24"x10 1/2"x13")




  • Special Accessories
    Drill Adapt Shaft 1 pc
    Drill Bush 1 pc
    1/2" Chuck & Key 1 pc
    1/4" (6mm) Chisel & Bit 1 pc
    3/8" (10mm) Chisel & Bit 1 pc
    1/2" (12mm) Chisel & Bit 1 pc
    5/8" (16mm) Chisel & Bit 1 pc
    3/4" (19mm) Chisel & Bit 1 pc
    1" (25mm) Chisel & Bit 1 pc



    Standard Accessories
    Chisel Bush 1 pc
    1/2" Chuck & Key 1 pc
