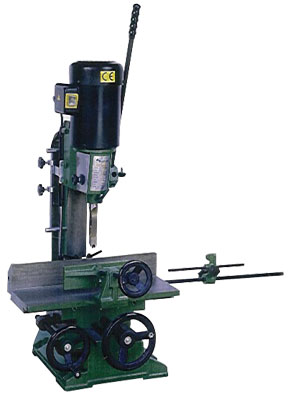

Chisel Mortiser

CM-1900
Hollow Chisel Mortiser
  • Model CM-1900
    Chisel Capacity (mm) 6-19 (1/4"-3/4")
    Max Chisel Stroke (mm) 153(6")
    Distance From Fence To Center Chisel (mm) 70(2 3/4")
    Distance From Center Chisel To table (mm) 170(6 1/2")
    Chuck Capacity (mm) 13(1/2")
    Speed Of Spindle (R.P.M.) 50HZ/2850 R.P.M.
    60HZ/3450 R.P.M.
    Size Of Table (mm) 200x450(8"x18")
    Size Of Base (mm) 300x400(12"x15 1/2")
    Table Molement Longitudinal (mm) 370(14 1/2")
    Table Molement Lateral (mm) 70(2 3/4")
    Motor (HP) 1(0.75KW)
    Overall Height (mm) 840(33")
    Net Weight (KGS) 82
    Gross Weight (KGS) 94
    CUFT 10.00'
    Packing Size 558x590x840 (22"x23"x33")




  • Special Accessories
    Drill Adapt Shaft 1 pc
    Drill Bush 1 pc
    1/2" Chuck & Key 1 pc
    1/4" (6mm) Chisel & Bit 1 pc
    3/8" (10mm) Chisel & Bit 1 pc
    1/2" (12mm) Chisel & Bit 1 pc
    5/8" (16mm) Chisel & Bit 1 pc
    3/4" (19mm) Chisel & Bit 1 pc
    1" (25mm) Chisel & Bit 1 pc



    Standard Accessories
    Chisel Bush 1 pc
    1/2" Chuck & Key 1 pc
