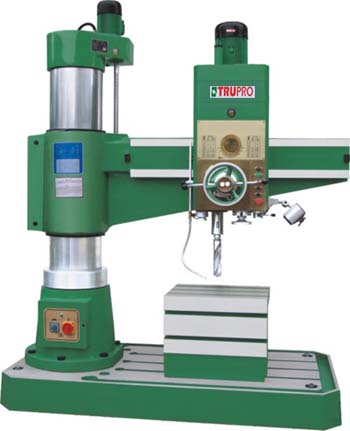

Radial Drill
l With wide range of speed and feed, with manual、power and fine feeds. The feed of machines are very easily engaged and disengaged at any time.
l With safe and reliable feed safety machine, all parts easy operation and change.
l All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraulic power.
l Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
l Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
l Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
l Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
Model
RD-3050X12-1
Max. drilling capacity
50mm Distance spindle axis to column generating line
350~
1250 mm Diameter of column
350 mm Spindle taper
MT5
Spindle travel
315 mm Spindle speed range
25~2000 r/min
Spindle speeds series
16
Range of Spindle feed 0.04~
3.2 mm/r Spindle feed
16
Max. distance spindle nose to base
350~
1220 mm Dimension of worktable
630×500×
500 mm Dimension of base
2050×1000×
200 mm Overall size
2150×1060×
2650 mm Main motor
4 KW
G.W/N.W.
3500/
3100kg Packing dimension
240×112×
252 cm Standard accessories:
Special accessories:
l Box shape worktable
l Taper sleeve
l Tool releasing wrench
l Drift
l Eyelet bolts
l Quick instead chuck
l Tapping chuck
l Grease gun
