CNC Tapping Center
- X axle working length is available in three specifications of 2500 / 6500mm and custom-made orders are also acceptable.
- Use precision high speed spindles to provide higher stability, longer life and longer working time.
- Movable column type is used to achieve the maximum working range with the smallest mechanical measurement.
- Precision ball linear rail is mounted on three axles to enhance the accuracy and stability during working.
- Precision grade gear unit/gears are used for X-axle presetting, which can be replaced with ball stud to enhance the precision level of the work piece.
- Clamp-arm cutter magazine is used for changing the cutter above the working area to improve the working speed and increase the parts production.
- The operation box is designed in a movable manner to achieve easier parts calibration and speedier operation.
- Three axles are calibrated by laser to guarantee that the mechanical accuracy shall be within the required tolerance at all times.

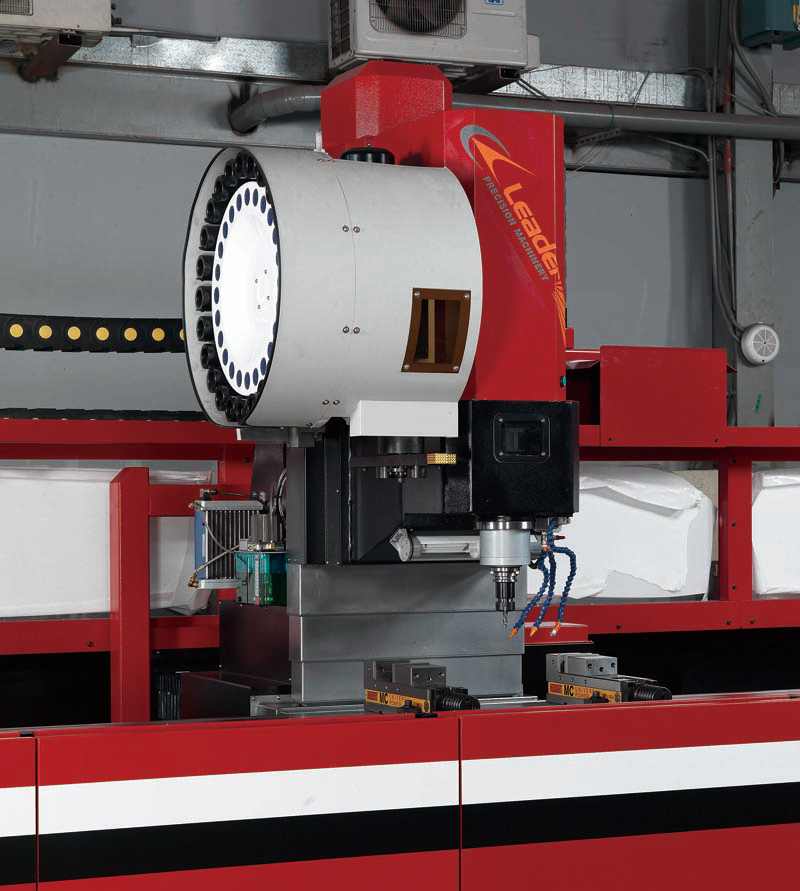

Rotary type tool changer
CE Safety Cover (Optional)
Model
TP-25RB4
TP-65RB4
Trip
X-axis
2500mm
6500mm
Y-axis
510mm
Z-axis
510mm
Feed rate
Speed infeed(XYZ)
32/12/12M/min
Leather infeed(XYZ)
8/8/8M/min
Positioning accuracy
X axis
Ball screw X: ±0.01mm
Rack X: ±0.01mm
Y/Z axis ball screw
Y/Z: ±0.01mm
Repeatability accuracy
±0.01mm
Server motor
X server
4.5KW
Y server
4.5KW
Z server
4.5KW (with brake)
Main axis
Main axis power
7.5KW/11KW
Main axis RPM
8000RPM
Main taper
BT40
Working table
Axis from top working table range
150-660mm
Working table
500×2500mm
500×6500mm
ATC knife
Knife hander
24
Exchange
Rotary type tool changer
Max. Dia./ length
75/200mm
Max. weight
6kgs
Coolant
Coolant type
Spray water
Coolant size
100L
Controller
Controller axis
3axis
Transmission type
Internet card / RS232
Normal
Type of dust
Chip belt conveyor
Collect dust type
Scraper type clip conveyor
Air pressure measure
6kg/cm2
Base electric
30KVA
Safe cover
CE Safe cover (Optional)
