Power Chuck

LC-3BA Series

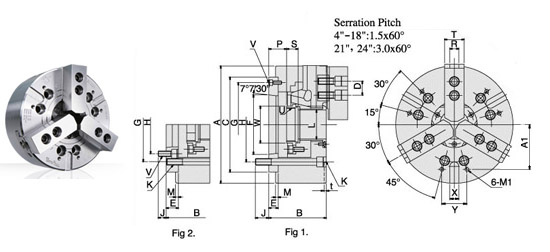

3-JAW Wedge Type Through-Hole Power Chuck (With adaptor)
  • Model

    LC3B-

    5A4

    LC3B-

    6A5

    LC3B-

    8A5

    LC3B-

    8A6

    LC3B-

    10A6

    LC3B-

    10A8

    LC3B-

    12A8

    Through hole(mm)

    33

    45

    52

    52

    75

    75

    91

    Plunger stroke(mm)

    10

    12

    16

    16

    19

    19

    23

    Jaw stroke (Dia.) (mm)

    5.4

    5.5

    7.4

    7.4

    8.8

    8.8

    10.6

    Max. draw bar pull force (kgf)

    1700

    2200

    3400

    3400

    4300

    4300

    5500

    Max. gripping force

    (kgf)/(kgf/cm2

    3600/29.6

    5700/28.5

    8800/26.5

    8800/26.5

    11000/27.5

    11000/27.5

    14300/27.5

    Max. speed (rpm)

    7000

    6000

    4900

    4900

    4200

    4200

    3300

    Weight (kg)

    6.9

    14.2

    25.8

    24.05

    40.9

    37.4

    59.5

    Matching cylinder

    RC5

    RC6

    RC8

    RC8

    RC10

    RC10

    RC12

    Matching soft jaw

    HC05

    HC06

    HC08

    HC08

    HC10

    HC10

    HC12

    Matching hard jaw

    HJ05

    HJ06

    HJ08

    HJ08

    HJ10

    HJ10

    HJ12





    Model

    LC3B-

    15A8

    LC3B-

    15A11

    LC3B-

    18A11

    LC3B-

    21A11

    LC3B-

    21A15

    LC3B-

    24A11

    LC3B-

    24A15

    Through hole(mm)

    117.5

    117.5

    117.5

    170

    170

    170

    170

    Plunger stroke(mm)

    23

    23

    23

    28

    28

    28

    28

    Jaw stroke (Dia.) (mm)

    10.6

    10.6

    10.6

    13

    13

    13

    13

    Max. draw bar pull force (kgf)

    7240

    7240

    7240

    9177

    9177

    9177

    9177

    Max. gripping force

    (kgf)/(kgf/cm2

    18355/23.5

    18355/23.5

    18355/23.5

    23861/30.5

    23861/30.5

    23861/30.5

    23861/30.5

    Max. speed (rpm)

    2500

    2500

    2000

    1700

    1700

    1400

    1400

    Weight (kg)

    134

    127

    171

    238

    235

    296

    293

    Matching cylinder

    RC15

    RC15

    RC15

    RC15

    RC15

    RC15

    RC15

    Matching soft jaw

    HC15

    HC15

    HC15

    HC21

    HC21

    HC21

    HC21

    Matching hard jaw

    HJ15

    HJ15

    HJ15

    HJ21

    HJ21

    HJ21

    HJ21
