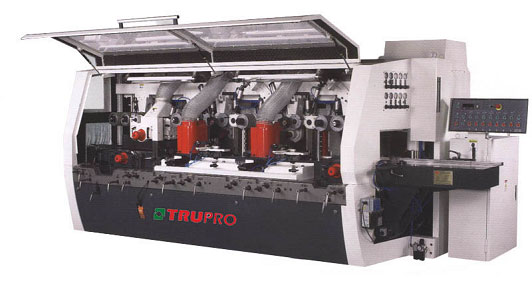

4 Side Moulder
MOU -300G / MOU -350G
4-Side Moulder
- In addition to integrating all features on the MOU-300G series, the function of MOU -300G / MOU -350G is greatly upgraded. The increased width of cutting capacity allows the MOU-300G/ MOU-350G to cut wider panel. Furthermore, the special equipment is provided on each horizontal spindle for achieving the best finish on the surface after cut.
Outboad bearing device
The device provides extra support for horizontal spindle to get better cutting performance and perfect finish quality.
Air loaded side pressure wheel at infeed table
Eliminate the use of conventional spring load, the side pressure wheel is loaded by air system. This feature not only provides higher pressure, but also allow for flexible adjustment of pressure. No elastic fatigue occurs. The air loaded side pressure makes the machine ideal for high speed cutting operations.
MOU-300G type equip extra pneumatic floating driven table roller. It forces the high moisture timber or hard timer into the machine without stock in front of first bottom spindle. Model MOU-300G MOU-350G Max. working width 20-310 mm 20-360 mm Max. working height 10-150 mm 10-150 mm Infeed table length 1.2 M 1.2 M Spindle motor horse power 10 HP / 15 HP 10 HP / 15 HP Feeding power 7.5 HP 7.5 HP Feeding speed 6~36 M/min 6~36 M/min Diameter of spindle 40 mm/50 mm 40 mm/50 mm Spindle speed 6,000 RPM 6,000 RPM Tool diameter of first bottom spindle 100-180 mm 100-180 mm Tool diameter of vertical spindle 100-200 mm 100-200 mm Tool diameter of horizontal spindle 125-230 mm 125-230 mm Adjustment range of straightening table and edge-joint 10 mm 10 mm Adjustment of vertical spindle 50 mm 50 mm Adjustment of horizontal spindle 30 mm 30 mm Diameter of feeding roller 140 x Ø35 mm 140 x Ø35 mm Width of steel feed roller 25 mm 25 mm Width of steel feed rollers opposite left spindle 20 mm 20 mm Width of rubber feed roller 50 mm 50 mm Max. cutting capacity for 1st bottom spindle 10 mm 10 mm Max. cutting capacity for 2st right vertical spindle 10 mm 10 mm
