Wood Lathe--Full Container

WL-1847V

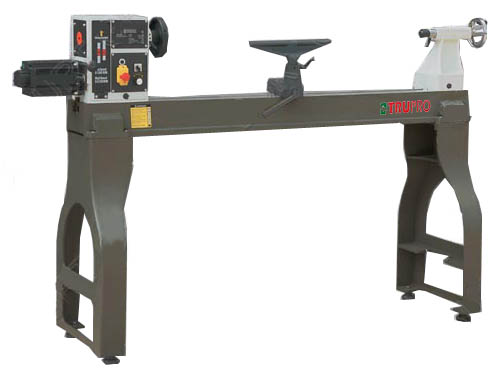

18x47" Wood Lathe with Electronic Variable Speed
  • l          Electronic Variable speed with speed digital screen.

    l          Infinitely variable spindle speeds of 130-3200rpm via brush-less DC motor.

    l          Two belt ratios for high torque when turning large diameters.

    l          Digital speed display on headstock.

    l          Quick belt change construction headstock.

    l          All cast iron construction for high stability and vibration free running.

    l          Cast iron stand with provision for a shelf.

  • model

    WL-1847V

    Motor

    1500W

    Motor step

    Variable

    Spindle speed

    0~1200rpm (Low Speed)

    0~3200rpm (High Speed)

    Swing over bed

    460 mm(18”)

    Distance between centers

    1200mm(47”)

    Drive spindle

    M33X3.5

    Head and tailstock taper

    MT2#

    Face plate

    152mm(6")

    Tool rest

    Tool Rest: 355mm(14")

    N.W / G.W

    265kgs / 186kgs

    Packing size

    1720 x 550 x 570mm
