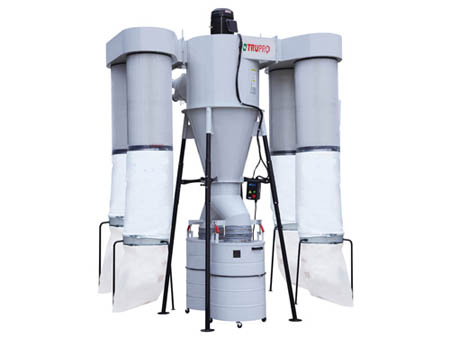

Dust Collector
l A cyclone separated the bulky wood waste from the air stream as it enters the dust collection system.
l It is much safer which the cyclone remotes potentially destructive objects before they can enter the impeller.
l A cyclone is more efficient because it consolidates 96-97% saw dust into an easy to empty container and the airflow won’t restricted by filter clogging.

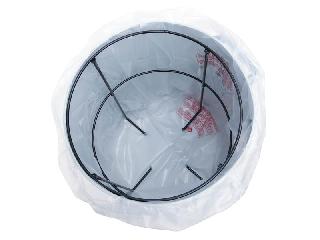

lAlways attached the 1-micron filter bag with 99.9％ efficiency for upper filtration and clear plastic bag for the bottom bag.

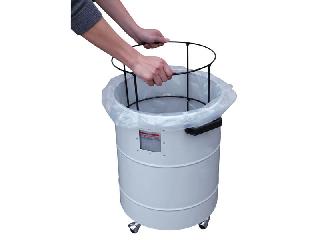

lThe quick and smart handle for pulling out collecting drum easily with only one person operating.
Model
DE-210SECK
Motor
10 HP
Air suction capacity w/o bag
6300 CFM
Max. static pressure
17 InH2O
Inlet diameter
13"×4"×5
Canister diameter
500mm
Drum capacity
63 gallon×2
Sound rating @3M
95 db at 3M position
Filter surface
12M2×4
Overall dimension
2800×2000×3600 mm
Packing size
Machine: 1330×1100×2100 mm
Canister: 1400×1000×800 mm×4 pcs
N.W / G.W / CUFT
Machine: 260 kgs / 340 kgs / 107'
Canister: 55 kgs / 60 kgs / 40'(4 pcs)
