4 Side Moulder
MOU-410 MOU-410S

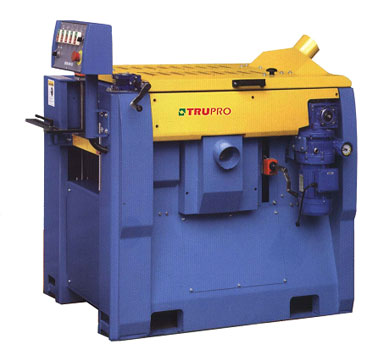

4-side Planer / Moulder
- Single or three phase motor drive.
- Powerful motor drive for each spindle.
- Mechanical meter for accurate reading of thickness adjustment.
- 7000 rpm high spindle speed.
- Compact construction. Maximum stability.
- Variable feed speed.
- See-thru top guard.
Model MOU-410 MOU-410S Planning Width 12-9/16" (320mm) 12-9/16" (320mm) Depth 7/16" ~9" (12~230mm) 7/16" ~9" (12~230mm) 2-Side Planning/Moulding Width 11-3/4" (300mm) 11-3/4" (300mm) Depth 7/16" ~9" (12~230mm) 7/16" ~9" (12~230mm) 4-side Planning/Moulding Width 0~10-1/4" (0~260mm) 0~10-1/4" (0~260mm) Depth 7/16" ~4" (12~100mm) 7/16" ~4" (12~100mm) Top horizontal spindle Width 16" (410mm) 16" (410mm) Max. moulding depth 3/8" (10mm) 3/8" (10mm) Max. planning depth 5/16" (8mm) 5/16" (8mm) Speed 7000 rpm 7000 rpm Cutterhead diameter 2-27/32" (72mm) 2-27/32" (72mm) Motor 4.1 HP 3 HP Bottom horizontal spindle Width 12" (300mm) 12" (300mm) Max. moulding depth 3/16" (5mm) 3/16" (5mm) Max. planning depth 5/32" (4mm) 5/32" (4mm) Speed 7000 rpm 7000 rpm Cutterhead diameter 2-27/32" (72mm) 2-27/32" (72mm) Motor 4.1 HP 3 HP Right & left vertical spindles Max. cutting height 4" (100mm) 4" (100mm) Max. cutting depth 13/16" (21mm) 13/16" (21mm) Spindle diameter 1-1/4" (31.75mm) 1-1/4" (31.75mm) Max. cutter head diameter 5-1/2" (140mm) 5-1/2" (140mm) Speed 7000 rpm 7000 rpm Cutter head diameter 3-1/2" (90mm) 3-1/2" (90mm) Motor 4.1 HP×2 3 HP×2 Table Area 1030×630 mm 1030×630 mm Elevation 230 mm 230 mm Power table(raise) --- --- Feed system Speed (variable) 11-52 ft/min 11-52 ft/min Motor 1/2 HP×1 1/2 HP×1 Dust hood outlet 4" ×4 4" ×4 Machine size Machine dimensions 1375×1080×1210 mm 1375×1080×1210 mm Packing dimensions 1230×1080×1130 mm 1230×1080×1130 mm Net weight 525 kgs 525 kgs Gross weight 620 kgs 620 kgs
1. Infeed and outfeed table extension
- The moulder is available to equip with table extensions at infeed and outfeed end. They provide solid support for big wood.
- The infeed and outfeed table are made of steel plate.
- The measures: 1210mm(L)x317mm(W)
2. infeed fence
- The infeed fence is extruded from aluminum alloy and anode treated for durability.
- Standard length of infeed fence is 1250 mm.
